Message Subject: 1890 Rigging
Shep
Posted 4/9/2007 7:50 PM (#54092)
Subject: 1890 Rigging



Member

Posts: 3899

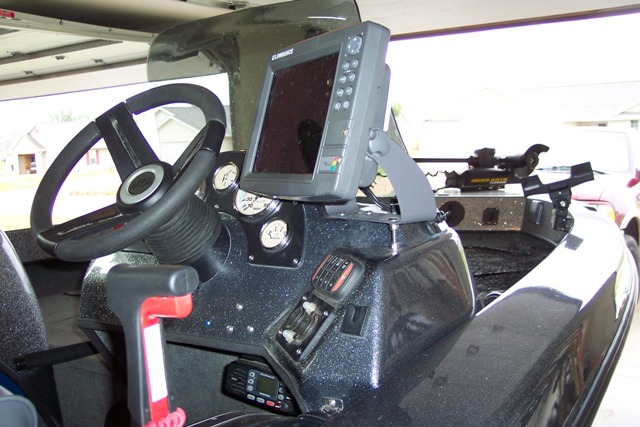

Here are some pics of the rigging I did on my 1890. This boat was very easy to work on.


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

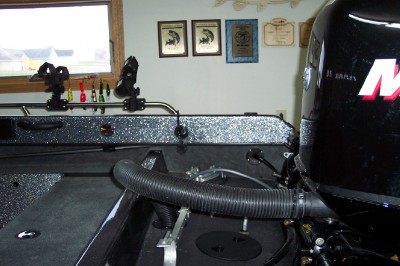

(1890ACPlug.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

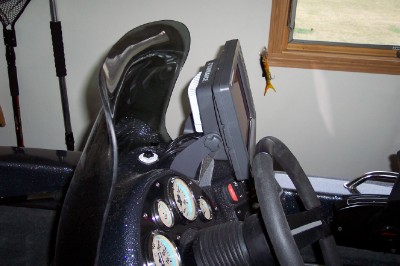

(1890Backermount.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

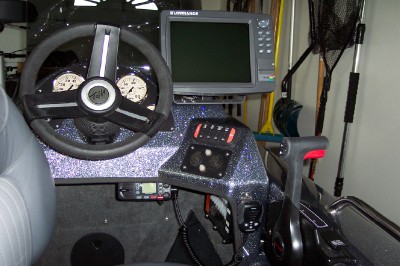

(1890Console.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

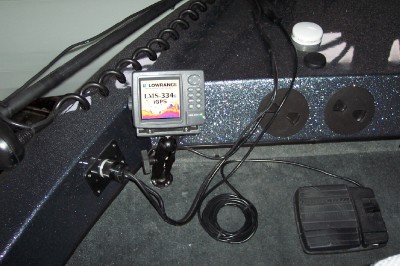

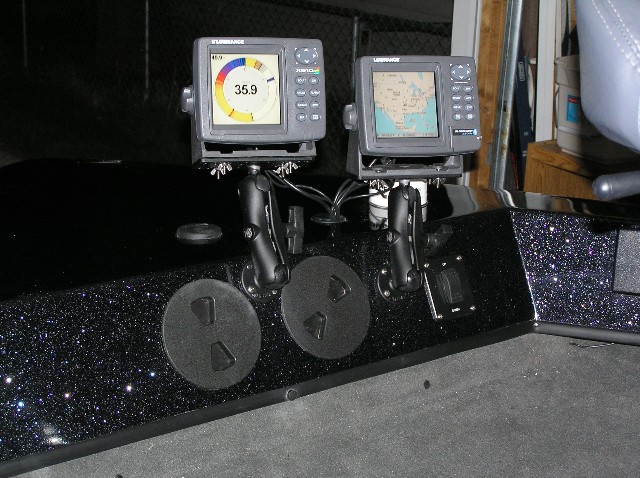

(1890BowSonar.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

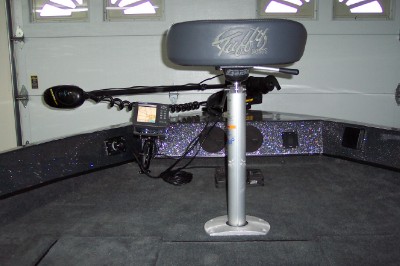

(1890Frontdeck.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

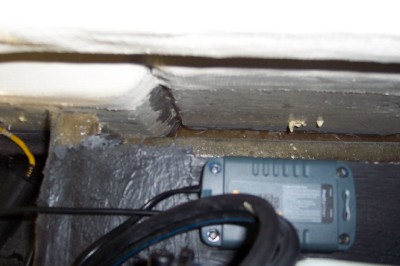

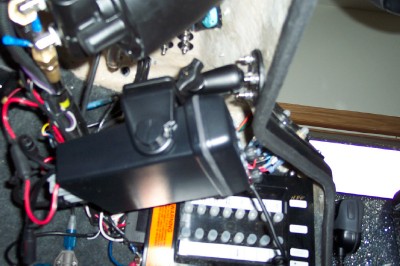

(1890StartBat.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

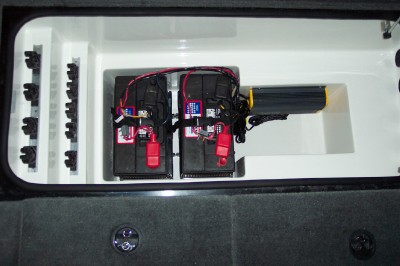

(1890TMBattery.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

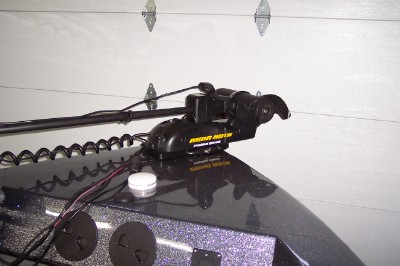

(1890TM.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

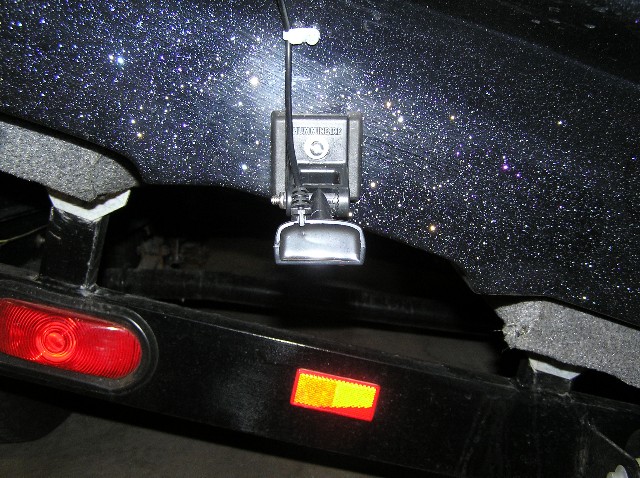

(1890Transducer.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(1890VHF.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

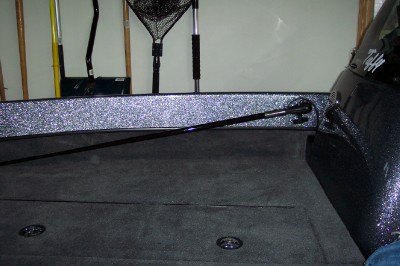

(1890VHFAnt.jpg)



Attachments
----------------
Attachments 1890ACPlug.jpg (45KB - 295 downloads)
Attachments 1890Backermount.jpg (42KB - 293 downloads)
Attachments 1890Console.jpg (50KB - 300 downloads)
Attachments 1890BowSonar.jpg (48KB - 291 downloads)
Attachments 1890Frontdeck.jpg (40KB - 297 downloads)
Attachments 1890StartBat.jpg (34KB - 290 downloads)
Attachments 1890TMBattery.jpg (38KB - 277 downloads)
Attachments 1890TM.jpg (39KB - 282 downloads)
Attachments 1890Transducer.jpg (51KB - 291 downloads)
Attachments 1890VHF.jpg (51KB - 279 downloads)
Attachments 1890VHFAnt.jpg (39KB - 285 downloads)
Top of the page Bottom of the page
KHedquist
Posted 4/9/2007 8:43 PM (#54097 - in reply to #54092)
Subject: RE: 1890 Rigging



Member

Posts: 1991

Shep nice job.

One thing I found on mine, I found that I could move the thrttle ass forward about a 1 or 2" so I did not have to reach back so far.

Unbolt it and push the throttle forward so you have enough room to clear the dash, you should not see the holes from before.

ALso I ran my chords and cables for the bow mount thru a hole drilled by the motor and put one of those cable covers over the hole and ran my chords out under the cap. Cleans up the bow area.

I thought it made it more comfortable.
Top of the page Bottom of the page
nwild
Posted 4/10/2007 7:56 AM (#54112 - in reply to #54097)
Subject: RE: 1890 Rigging


Member

Posts: 20

Shep,
Nice work!!! How did you mount your radio. I am thinking I could mount my stereo the same way, and then put the speakers under the cap. Do tell Sir!
Top of the page Bottom of the page
Shep
Posted 4/11/2007 2:36 PM (#54218 - in reply to #54112)
Subject: RE: 1890 Rigging



Member

Posts: 3899

Norm,

Come down Sunday to the Pete, and prefish with me, and you can get a looksie!

That should work for a stereo, but I kinda like moreyes idea to mount it on the side of the console. Ranger did it that way for a couple years. I think marine speakers will fit in the hole covers on the backside of the deck. Kind like the lunds.
Top of the page Bottom of the page
Mud Duck
Posted 4/11/2007 7:25 PM (#54239 - in reply to #54218)
Subject: RE: 1890 Rigging



Member

Posts: 273

I also like how you mounted that marine band. If I'm there on Sunday I'll look for ya. I'll try and post a few pics of my 2060 rigging.
Top of the page Bottom of the page
lambeau
Posted 4/27/2007 10:19 PM (#54979 - in reply to #54097)
Subject: RE: 1890 Rigging


Also I ran my cords and cables for the bow mount thru a hole drilled by the motor and put one of those cable covers over the hole and ran my cords out under the cap. Cleans up the bow area.

nice idea, Kirt.
do you have any pics of this?
Top of the page Bottom of the page
KHedquist
Posted 4/28/2007 3:45 AM (#54983 - in reply to #54979)
Subject: RE: 1890 Rigging



Member

Posts: 1991

I can get some
Top of the page Bottom of the page
KHedquist
Posted 4/28/2007 3:50 AM (#54984 - in reply to #54092)
Subject: RE: 1890 Rigging



Member

Posts: 1991

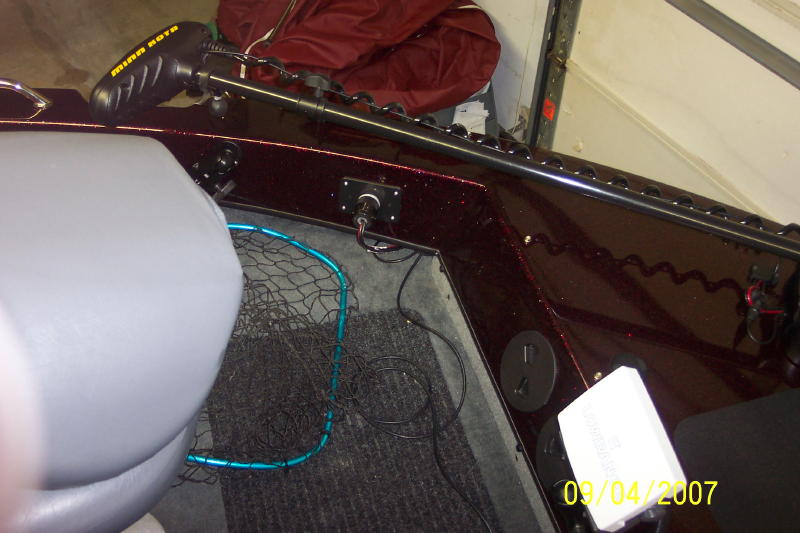

It is hard to see


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(tuffy 005 (2).jpg)



Attachments
----------------
Attachments tuffy 005 (2).jpg (64KB - 282 downloads)
Top of the page Bottom of the page
lambeau
Posted 4/28/2007 10:19 PM (#54999 - in reply to #54984)
Subject: RE: 1890 Rigging


i used your idea...thanks!

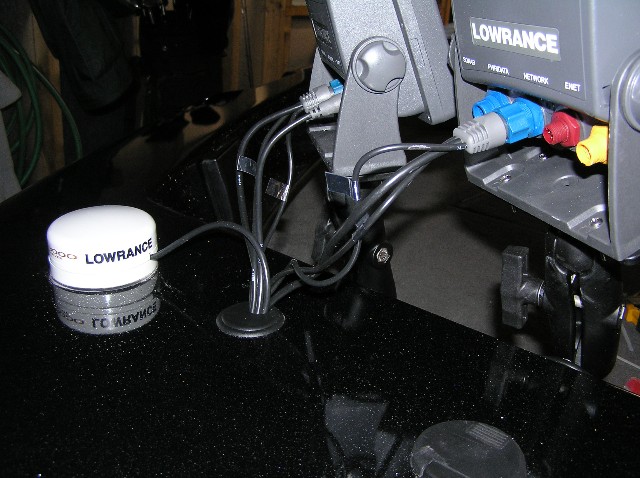

drilled a 1 3/4" hole in the bow cap and used one of those computer cable collectors to finish it off nicely. turned out great and no mess of cords.

the access under the bow cap is sooo nice for rigging. everything is out of sight under there, including the NMEA bus; just zip-tie/and peg the wires up under the cap to run them back to the breaker box and everything is clean and neat.


Edited by lambeau 4/28/2007 10:28 PM



Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(1890rigging 012.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(1890rigging 017.jpg)



Attachments
----------------
Attachments 1890rigging 012.jpg (92KB - 265 downloads)
Attachments 1890rigging 017.jpg (108KB - 272 downloads)
Top of the page Bottom of the page
lambeau
Posted 4/28/2007 10:24 PM (#55000 - in reply to #54999)
Subject: RE: 1890 Rigging

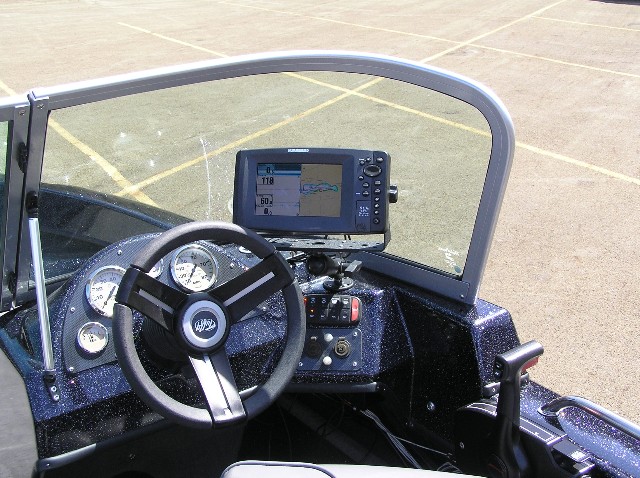

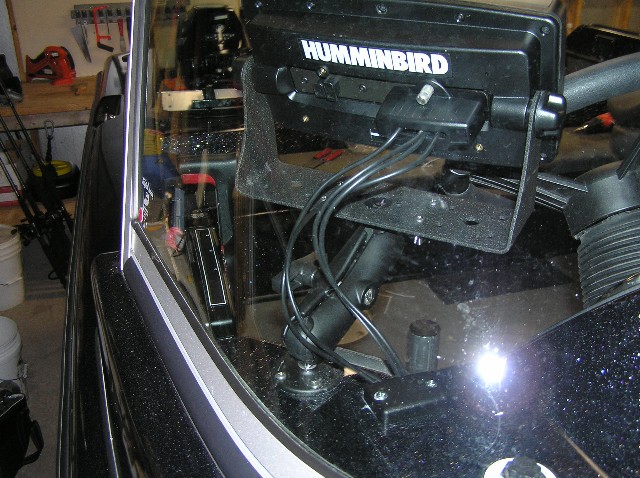

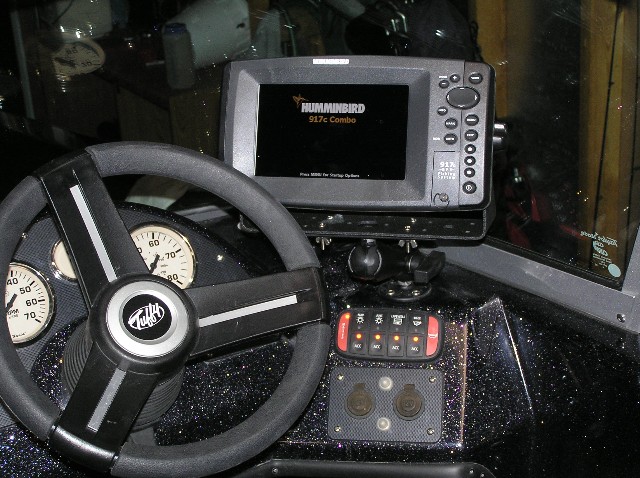

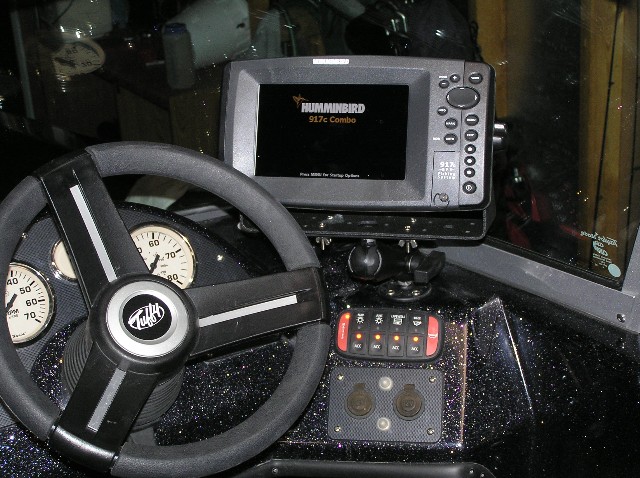

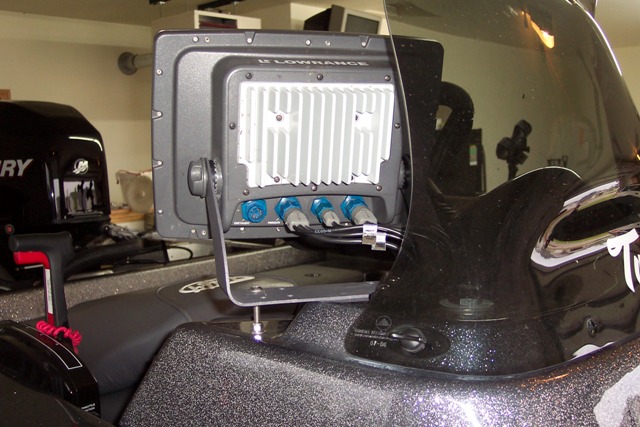

fitting the wide screen sonar/gps inside the curve of the windshield was a trick. the nice thing about the ease of access under the console is that it's easy to put some big washers on the back side of the ram-mount to make sure it'll be rock hard stable.
the new Humminbirds come with a cord collector, nice detail.


Edited by lambeau 4/28/2007 10:26 PM



Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(1890rigging 018.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(1890rigging 021.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(1890rigging 010.jpg)



Attachments
----------------
Attachments 1890rigging 018.jpg (111KB - 272 downloads)
Attachments 1890rigging 021.jpg (118KB - 264 downloads)
Attachments 1890rigging 010.jpg (118KB - 285 downloads)
Top of the page Bottom of the page
lambeau
Posted 4/28/2007 10:29 PM (#55001 - in reply to #55000)
Subject: RE: 1890 Rigging

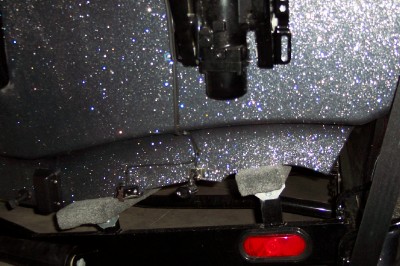

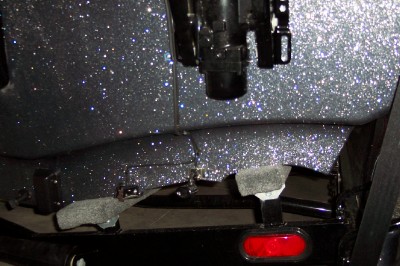

i'm always nervous when mounting transducers that it's not going to be at the right level or will be somewhere there's bad water coming off the boat.
this spot worked great, it held the bottom easily in 70 feet even at high speed.



Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(1890rigging 022.jpg)



Attachments
----------------
Attachments 1890rigging 022.jpg (125KB - 276 downloads)
Top of the page Bottom of the page
Shep
Posted 7/16/2007 10:19 AM (#58596 - in reply to #55001)
Subject: RE: 1890 Rigging



Member

Posts: 3899

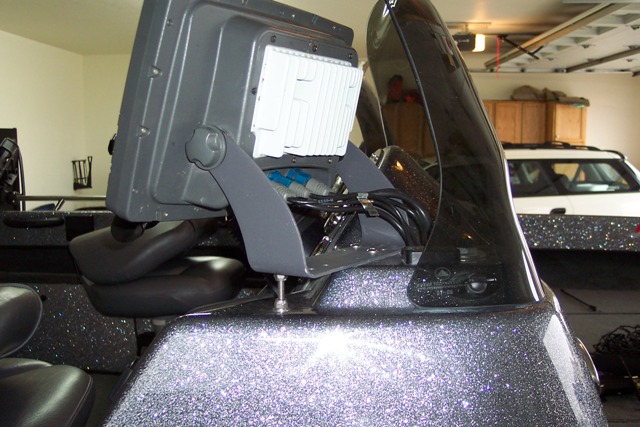

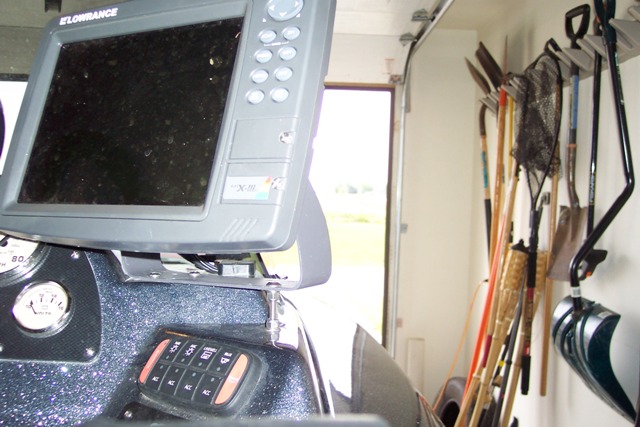

Here are some close ups of my new Tom Backer Mounting of the X-111. I changed the angle some, and added a strut rod to the outside for support. She's solid now.


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(X111MountA.JPG)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(X111MountB.JPG)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(X111MountC.JPG)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(X111MountD.JPG)



Attachments
----------------
Attachments X111MountA.JPG (91KB - 240 downloads)
Attachments X111MountB.JPG (94KB - 256 downloads)
Attachments X111MountC.JPG (84KB - 266 downloads)
Attachments X111MountD.JPG (89KB - 243 downloads)
Top of the page Bottom of the page
